Bulkhead range
3.50kW
4.00kW
ARTH12KSLAP
| Product Category | Ducted Systems |
| Product Range | Bulkhead range |
| Capacity | 3.50kW Cooling 4.00kW Heating |
| Model Number | ARTH12KSLAP |
Technical Specifications
| Indoor unit | ARTH12KSLAP |
| Outdoor unit | AOTH12KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 3.50 (0.9 - 4.1) |
| Heating Capacity kW (Rated (Min - Max)) | 4.00 (0.9 - 5.1) |
| Input Power Cooling kW (Rated (Max)) | 0.98 (1.41) |
| Input Power Heating kW (Rated (Max)) | 1.1 (1.97) |
| EER Cooling kW/kW | 3.57 |
| COP Heating kW/kW | 3.64 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3 / 2.5 / 2.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 2.5 / 2 / 1.5 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.645 / 4.269 / 4.374 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.371 / 3.934 / 3.492 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.97 / 5.006 / 5.313 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.373 / 4.109 / 3.73 |
| Running Current amps (Cooling / Heating) | 4.6 / 5.1 |
| Moisture Removal l/hr | 1.5 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 31 / 23 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 31 / 23 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 47 / 48 |
| Outdoor Sound Power dBA | 61 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 181 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 181 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 198 x 700 x 450 |
| Indoor Unit Weight kg | 15.50 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 542 x 799 x 290 |
| Outdoor Unit Weight kg | 32.00 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 9.52 |
| Pipe Length m (Max (Precharged)) | 20 (15) |
| Max Height Difference m | 15 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 46 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 850 |
Show all specifications
Collapse all specifications
Dimensions
Ducted Bulkhead Indoor Model ARTH12KSLAP
Ducted Bulkhead Outdoor Model AOTH12KBTA
What’s included in your purchase
ARTH12KSLAP
Indoor Unit

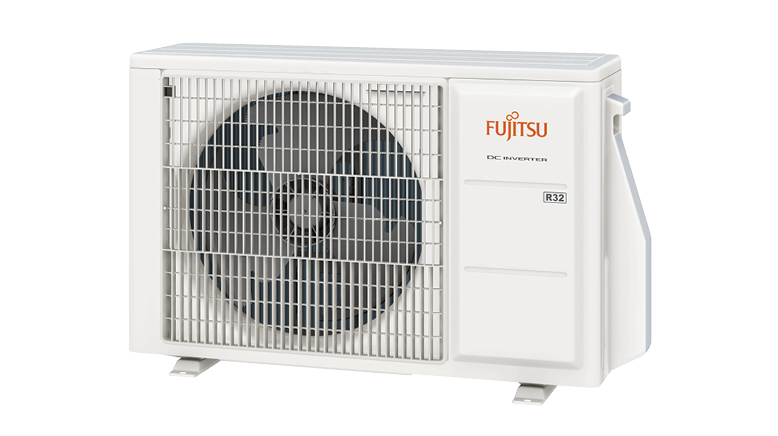

AOTH12KBTA
Outdoor Unit
UTY-RNRYZ3
Wired Remote Controller - Backlit Touch Panel Wall Controller
Optional Parts
UTY-LBTYM
Wireless Remote Controller - Wireless Remote Controller & Infra-Red Receiver Kit
UTY-NXT-BOX
WiFi Control
UTY-RHRYT
Wired Remote Controller - Simple Controller Without Mode Button
UTY-RNRYT5
Wired Remote Controller - Backlit Touch Panel Wall Controller
UTY-RSRYT
Wired Remote Controller - Simple Controller With Mode Button
b751f2ef-38b6-4cd6-8cf4-0e0c6099962e.jpg?sfvrsn=b70bdba9_1)
UTY-RVRY
Wired Remote Controller - KAGAMI Controller
UTD-GXTA-W
Auto Grille Louvre Kit
UTD-GXTB-W
Auto Grille Louvre Kit
UTY-TERX
UTY-VKSX
KNX COVERTER INTERFACE
UTY-VMSX
MODBUS Convertor for Indoor Unit
UTY-XCSX
External Input & Output PCB
UTY-XWZXZG
External Connection Wire
UTZ-GXEA
Key features
Fujitsu’s Bulkhead Ducted heat pump / air conditioner features a compact design to allow for flexible installation in the best available space.
This single room heat pump / air conditioner offers efficient features for ultimate climate control.
-
All DCWith All DC, electricity loss is decreased and power consumption reduced.
-
Auto RestartShould there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
-
Auto ChangeoverThe unit automatically switches between operating modes based on the temperature setting and room temperature.
-
Blue Fin Heat ExchangerCorrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
-
Connectable Distributing DuctSystems are capable of attaching a field-supplied branch ducts distributing the airflow.
-
Economy ModeLimits the maximum operation current, and performs operation with the power consumption suppressed.
-
On-Off TimerON-OFF timer can be set to operate once every 24 hours.
-
Weekly + Setback TimerWeekly + setback timer can set temperature for two time spans and for each day of the week.
-
Automatic Fan Speed Adjustment
-
Control Port
-
Error Code DisplayError sign is shown on the wired remote controller display or the indicator lamps on the IR receiver unit.
