| Type | VRF |
| Available in |
Heat Pump Space Saving - 22.4kW, 28.0kW, 33.5kW, 40.0kW, 45.0kW, 50.4kW, 56.0kW, 62.4kW, 68.0kW, 73.0kW, 80.0kW, 85.0kW, 90.0kW, 96.0kW, 101.0kW, 108.0kW, 113.0kW, 118.0kW, 125.0kW, 130.0kW, 135.0kW
Heat Pump Energy Efficient - 44.8kW, 55.9kW, 67.2kW, 72.8kW, 78.3kW, 84.8kW, 89.4kW, 95.9kW, 100.5kW, 107.0kW, 113.5kW, 120.0kW |
| Refrigerant | R410A |
Download PDF
Warranty Information
Download our warranty card to read about our 3 year warranty
View Warranty Info
Key features
-
Flexible Piping OptionsPiping can be connected by using either separation tubes or headers to suit a variety of project designs.
-
Long Piping Capability 1000m
Our advanced refrigerant control technology allows us to achieve a total refrigerant piping length of up to 1000m.
-
3 Phase DC Outdoor Fan
Efficiency is improved with the highly efficient motor with sophisticated drive control. Additionally, the DC fan motor exhibits low noise output.
-
Subcool Heat Exchanger
High heat exchanger efficiency is achieved by using an internal projection shape with double pipe construction.
-
Multiple Outdoor Operation
When multiple outdoor units are connected, a sophisticated operation is performed by each compressor. Rather than running one compressor at full load and distributing refrigerant to one heat exchanger, this control method operates all compressors at part load and distributes refrigerant to all of the heat exchangers allowing for the overall system efficiency to be improved.
-
4-Face Heat Exchanger
Heat exchanger efficiency is significantly improved by the introduction of a new 4-face heat exchanger with an increased effective surface area.
Dimensions

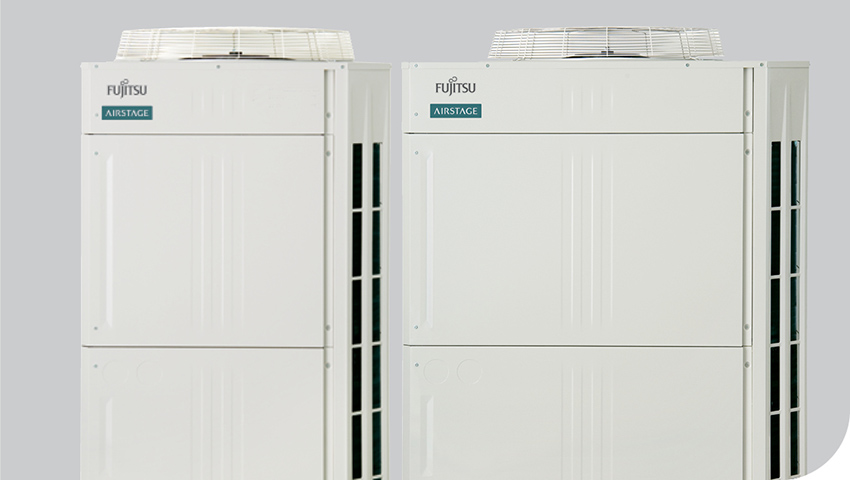

Airstage VRF V-III Outdoor Models AJY072/90LALBH
Airstage VRF V-III Outdoor Models AJY108/126/144LALBH
